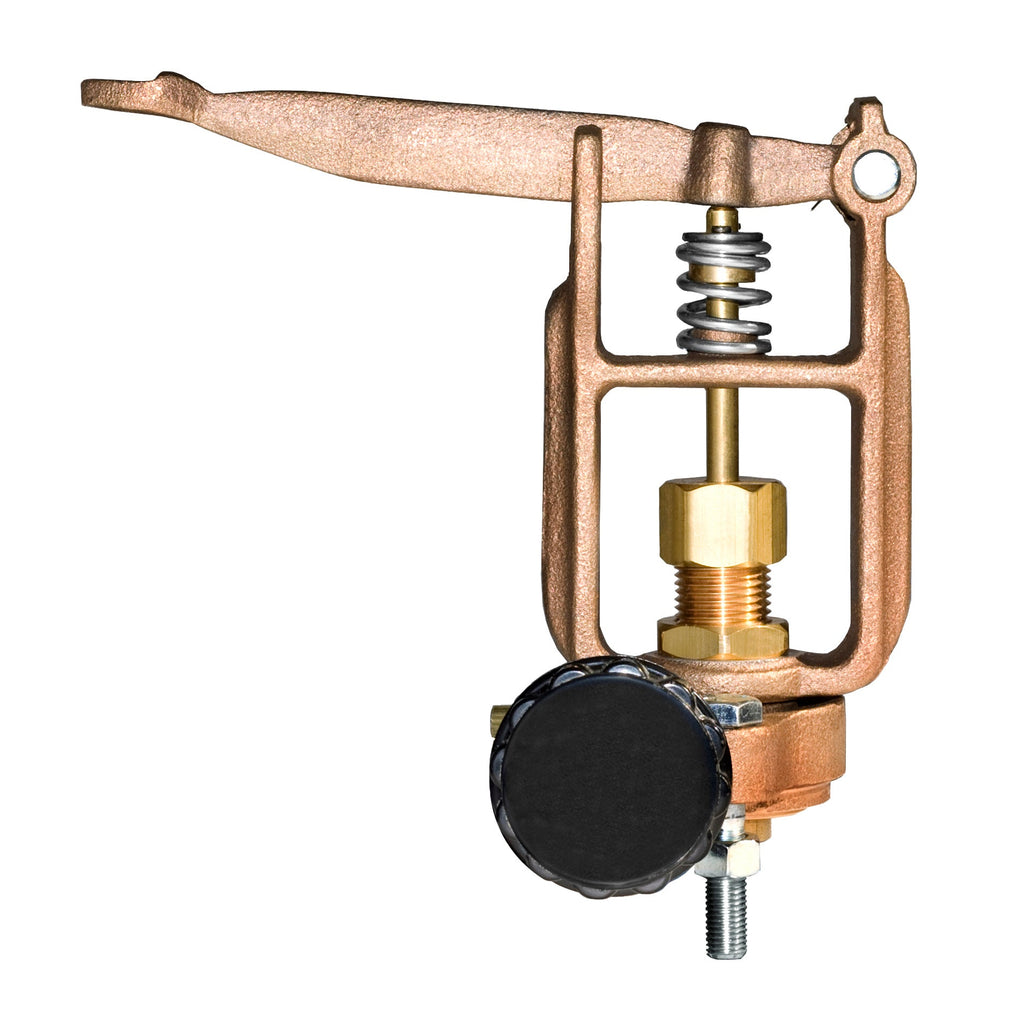

Duco® SVW34 is a commercial-grade valve designed to achieve a perfect start and stop of steam flow even after years of use. It quickly opens as force is applied to the lever and automatically self closes upon release.
This complete wet valve assembly is commonly installed in a spotting board and replaces the old #SU34H.
The body is made of bronze which is high ductility, abrasion and corrosion resistant. Contains lead, not for use in water systems intended for human consumption.
Specifications
|
- 125 lbs WSP @ 350°F Max.
- 400 lbs WOG
- Bronze Body
- 3/32" Wet Orifice (Steam)
- 100% Leak % Pressure Tested
- Mfg. Part# SU34H
|
Included in Set |
- 1 Spotting Board Valve Complete with Hardware
|
|
SVW34 Technical Sheet
Maintenance Instructions
