Description
Duco® genuine replacement parts are manufactured to the same high standards as the components originally installed in your equipment.

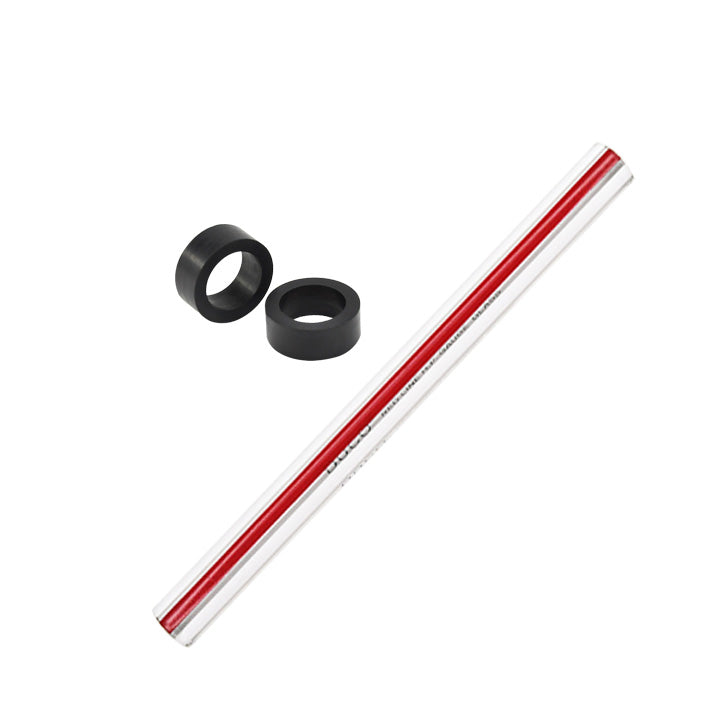

The DBG-HR series is a transparent, commercial-grade tubular sight glass designed to effectively monitor the water level inside a condensate return tank, reservoir tank or low-pressure boiler.

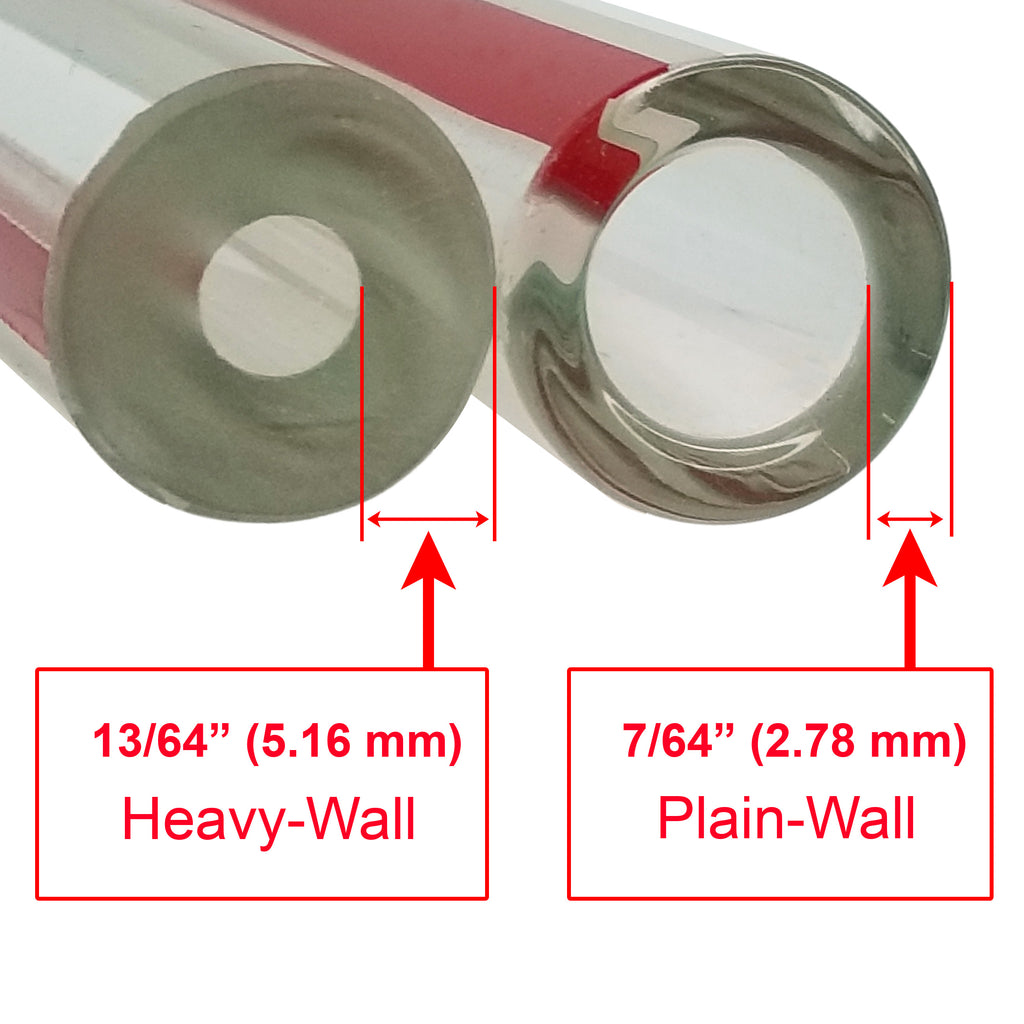

It features an enhanced structure with increased wall thickness, providing improved durability, resistant to pressure fluctuations, and a reduced risk of breakage. It also includes red and white lines for improved visibility, making water level readings quick and accurate.
Commonly installed with a water gauge valve (sold separately) to complete the assembly. Fits 5/8" OD tubular sight glasses on all brands of steamers, steam boilers, return tanks and reservoirs.
| Specifications |
|
|
Maximum Recommended Working Pressure, psi |
|
|
Length (Inch) up to |
Steam Boiler Service up to 425ºF |
|
10 |
345 |
|
12 |
340 |
|
14 |
335 |
|
16 |
325 |
|
18 |
320 |
| 20 |
315 |
|
24 |
300 |
