Description
Duco® genuine replacement parts are manufactured to the same standards as the part that came in your condensate return tank.

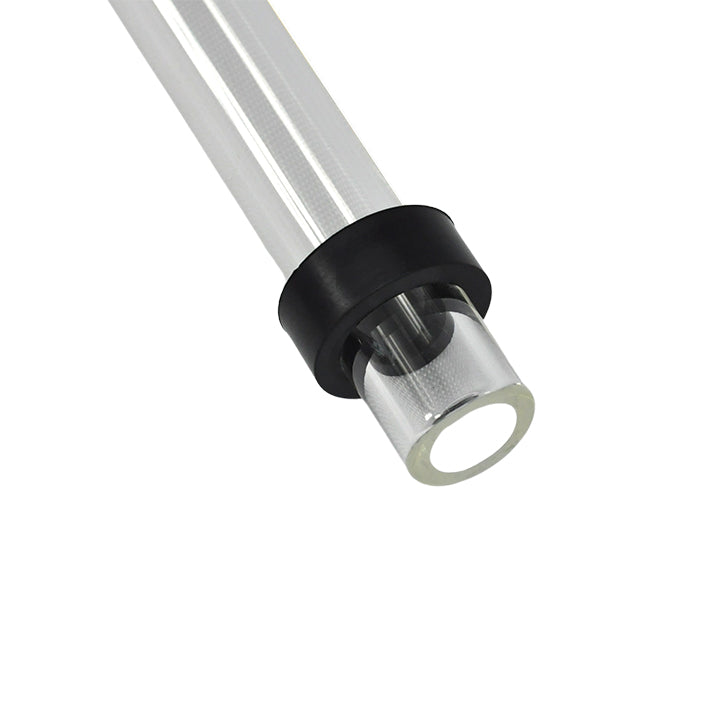

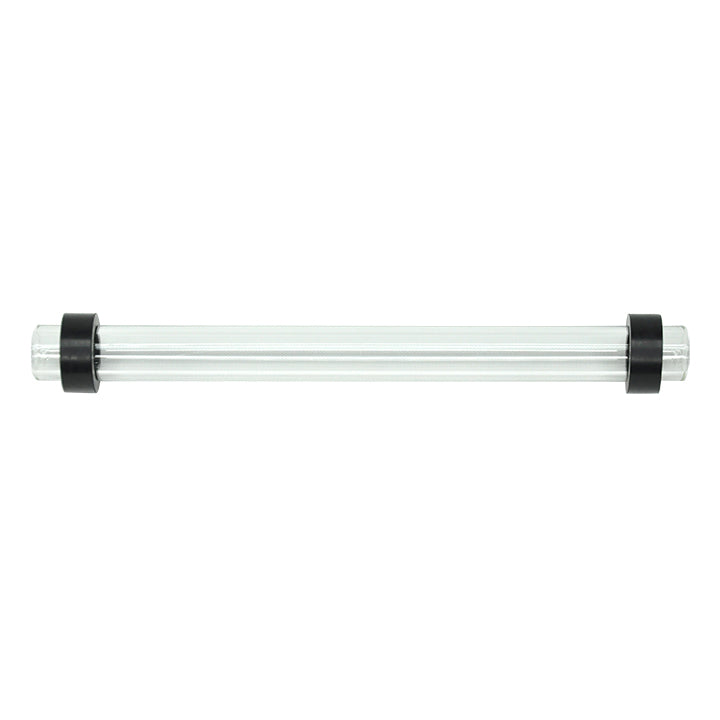

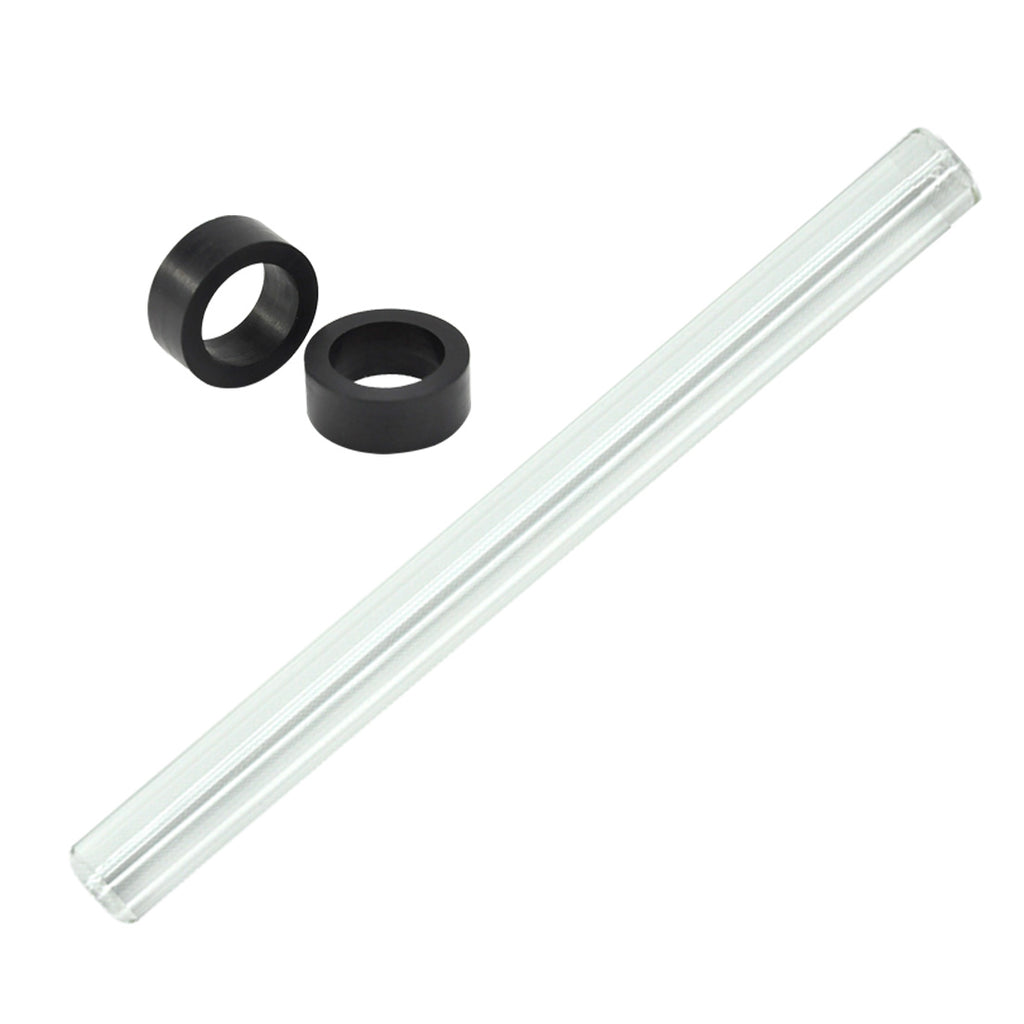

DBG series is a transparent commercial-grade tubular sigh glass designed to effectively monitor the water level inside a condensate return tank, reservoir tank or low pressure boiler. It is commonly installed with a water gauge valve (sold separately) to complete the assembly.
Fits to 5/8" OD tubular sight glasses of all brands steamer, steam boiler, return tanks and reservoirs.
| Specifications |
|
|
Maximum Recommended Working Pressure, psi |
|
|
Length (Inch) up to |
Steam Boiler Service up to 425ºF |
|
8 |
320 |
|
10 |
315 |
|
12 |
305 |
|
14 |
295 |
|
16 |
285 |
|
18 |
280 |
| 20 |
270 |
|
24 |
255 |
